[openCV] 코로나-19 mask detection with CNN, openCV

마스크 착용/미착용이 라벨링 된 사진 615장을 이용하여
CNN deep learning model을 구축하고
openCV Haar Cascade Face Detection model을 적용하여
카메라 구동하여 mask를 detection 하는 것을 확인함





1. 데이터 준비

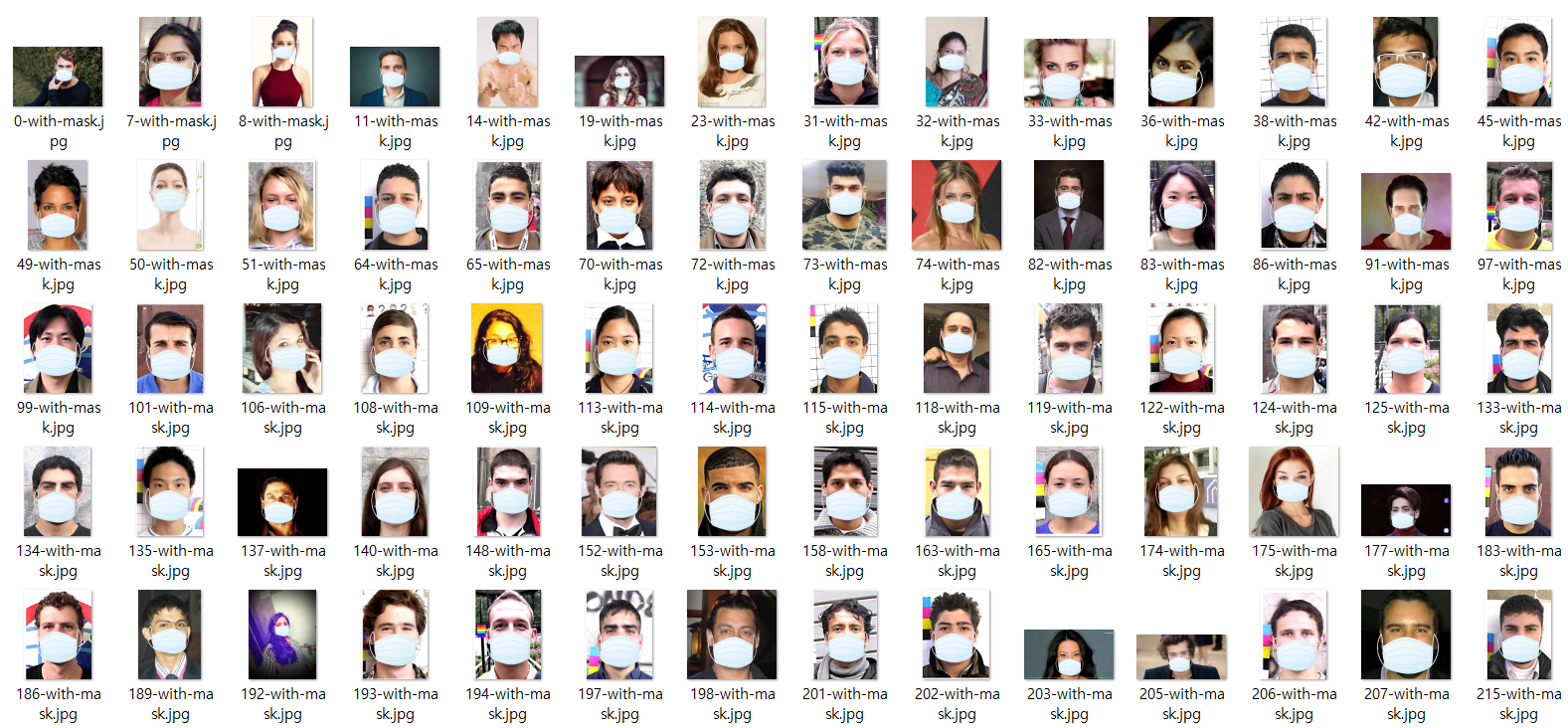

• 마스크 착용 218개 image



• 마스크 미착용 397개 image



2. 데이터 불러오기

[IN]

import cv2,os
import numpy as np
from tensorflow.python.keras.utils import np_utils
import imutils #pip install imutils
import pytesseract #pip install pytesseract
import tensorflow as tf
import keras

import matplotlib.pyplot as plt
%matplotlib inline



[IN]

data_path='../data/mask_data/'
categories=os.listdir(data_path)
labels=[i for i in range(len(categories))]

label_dict=dict(zip(categories,labels))
label_dict

[OUT]

{'without_mask': 0, 'with_mask': 1}

[IN]

data=[]
target=[]

for category in categories:
    folder_path=os.path.join(data_path,category)
    img_names=os.listdir(folder_path)

    for img_name in img_names:
        img_path=os.path.join(folder_path,img_name)
        img=cv2.imread(img_path)

        try:
            gray=cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)
            resized=cv2.resize(gray,(100, 100))
            data.append(resized)
            target.append(label_dict[category])

        except Exception as e:
            print('Exception:', e)

[IN]

data=np.array(data)/255.0
data=np.reshape(data,(data.shape[0], 100, 100, 1))
target=np.array(target)

new_target=np_utils.to_categorical(target)

np.save('data', data)
np.save('target', new_target)

data=np.load('data.npy')
target=np.load('target.npy')

print(data.shape)
print(target.shape)

[OUT]

(615, 100, 100, 1)
(615, 2)



3. 학습용/검증용 세트로 분할하기

[IN]

from keras.models import Sequential
from keras.layers import Dense,Activation,Flatten,Dropout
from keras.layers import Conv2D,MaxPooling2D
from keras.callbacks import ModelCheckpoint
from sklearn.model_selection import train_test_split
from keras.callbacks import EarlyStopping
from tensorflow.python.keras.optimizer_v2 import rmsprop

train_data,test_data,train_target,test_target=train_test_split(data,target, test_size=0.2, random_state=42)



4. 이미지 생성(Data augmentation to improve generalization)

[IN]

from tensorflow.keras.preprocessing.image import ImageDataGenerator
aug = ImageDataGenerator(rotation_range=20,
                         zoom_range=0.2,
                         width_shift_range=0.2,
                         height_shift_range=0.2,
                         shear_range=0.15,
                         horizontal_flip=True,
                         fill_mode="nearest")



5. 하이퍼파라미터 튜닝(Hyperparameter Tuning With Bayesian Optimization)

[IN]

def get_model(input_shape, dropout2_rate=0.5):
    model = Sequential()
    model.add(Conv2D(32, kernel_size=(3, 3),
                     activation='relu',
                     input_shape=input_shape,
                     name="conv2d_1"))
    model.add(Conv2D(64, (3, 3), activation='relu', name="conv2d_2"))
    model.add(MaxPooling2D(pool_size=(2, 2), name="maxpool2d_1"))
    model.add(Dropout(0.25, name="dropout_1"))
    model.add(Flatten(name="flatten"))
    model.add(Dense(128, activation='relu', name="dense_1"))
    model.add(Dropout(dropout2_rate, name="dropout_2"))
    model.add(Dense(2, activation='softmax', name="dense_2"))
    return model

[IN]

def fit_with(input_shape, verbose, dropout2_rate, lr):

    model = get_model(input_shape, dropout2_rate)

    #optimizer = rmsprop.RMSProp(learning_rate=lr)
    optimizer = 'rmsprop'
    model.compile(loss=tf.keras.losses.BinaryCrossentropy(),
                  optimizer=optimizer,
                  metrics=['accuracy'])

    model.fit(train_data, train_target, epochs=10,
              batch_size=4, verbose=verbose)

    score = model.evaluate(test_data, test_target, steps=10, verbose=0)
    print('Test loss:', score[0])
    print('Test accuracy:', score[1])

    return score[1]

[IN]

from functools import partial

verbose = 1
fit_with_partial = partial(fit_with, input_shape, verbose)

[IN]

from bayes_opt import BayesianOptimization

pbounds = {'dropout2_rate': (0.1, 0.5), 'lr': (1e-4, 1e-2)}

optimizer = BayesianOptimization(
    f=fit_with_partial,
    pbounds=pbounds,
    verbose=2,
    random_state=1,
)

optimizer.maximize(init_points=10, n_iter=10)

for i, res in enumerate(optimizer.res):
    print("Iteration {}: \n\t{}".format(i, res))

print(optimizer.max)

[OUT]

{'target': 0.8373983502388, 'params': {'dropout2_rate': 0.10004574992693796, 'lr': 0.003093092469055214}}



6. CNN 모델 구축

[IN]

model=Sequential()
model.add(Conv2D(32,kernel_size=(3,3),input_shape=data.shape[1:], activation='relu'))
model.add(Conv2D(64,(3,3), activation='relu'))
model.add(MaxPooling2D(pool_size=(2,2)))
model.add(Dropout(0.25))
model.add(Flatten())
model.add(Dense(128,activation='relu'))
model.add(Dropout(0.1942))
model.add(Dense(2, activation='softmax'))

[IN]

opt = keras.optimizers.Adam(learning_rate=0.0001)

model.compile(loss='binary_crossentropy',
              optimizer=opt,
              metrics=['accuracy'])

[IN]

early_stopping = EarlyStopping(monitor='val_loss', patience=50)
checkpoint = ModelCheckpoint(
    '{epoch:03d}-{val_loss:.4f}.model',
    monitor='val_loss',
    verbose=0,
    save_best_only=True,
    mode='auto',
    strict=True
    )

[IN] Train Model

history=model.fit(aug.flow(train_data, train_target),
                  epochs=100,
                  batch_size=4,
                  callbacks=[checkpoint, early_stopping],
                  validation_data=(test_data, test_target))

print(model.evaluate(test_data,test_target))
model.summary()

[OUT]

Model: "sequential"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d (Conv2D)             (None, 98, 98, 32)        320

 conv2d_1 (Conv2D)           (None, 96, 96, 64)        18496

 max_pooling2d (MaxPooling2  (None, 48, 48, 64)        0
 D)

 dropout (Dropout)           (None, 48, 48, 64)        0

 flatten (Flatten)           (None, 147456)            0

 dense (Dense)               (None, 128)               18874496

 dropout_1 (Dropout)         (None, 128)               0

 dense_1 (Dense)             (None, 2)                 258

=================================================================
Total params: 18893570 (72.07 MB)
Trainable params: 18893570 (72.07 MB)
Non-trainable params: 0 (0.00 Byte)



7. 모델 평가(Evaluate the model : best model (086-0.3412.model))

[IN]

%matplotlib inline
import matplotlib.pyplot as plt

fig, loss_ax = plt.subplots(figsize=(10,6))
acc_ax = loss_ax.twinx()

acc_ax.plot(history.history['accuracy'], 'b', label='train acc')
acc_ax.plot(history.history['val_accuracy'], 'g', label='val acc')

loss_ax.plot(history.history['loss'], 'y', label='train loss')
loss_ax.plot(history.history['val_loss'], 'r', label='val loss')

loss_ax.set_xlabel('epoch')
loss_ax.set_ylabel('loss')
acc_ax.set_ylabel('accuray')

acc_ax.legend(loc='upper left', bbox_to_anchor=(1.15, 0.5))
loss_ax.legend(loc='lower left', bbox_to_anchor=(1.15, 0.5))

plt.show()

[OUT]

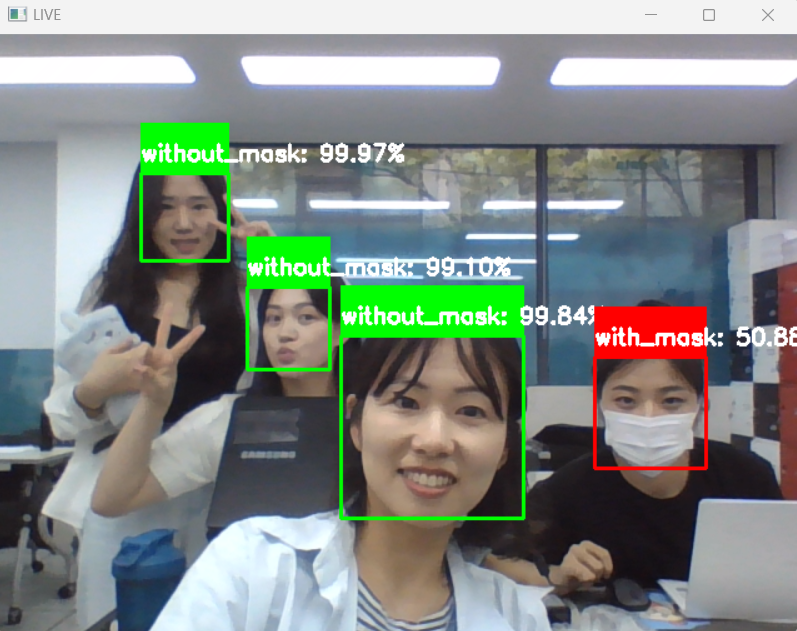

8. 카메라 구동 후 mask detection(Face mask detection in real-time video)

[IN]

import cv2
import numpy as np
from keras.models import load_model

labels_dict={1:'with_mask', 0:'without_mask'}
color_dict={0:(0,255,0),1:(0,0,255)}

source=cv2.VideoCapture(0)

fourcc = cv2.VideoWriter_fourcc('X', 'V', 'I', 'D')
out = cv2.VideoWriter('output.avi', fourcc, 20, (640,480))

[IN]

# face recognition/classifier : haar feature
#face_clsfr=cv2.CascadeClassifier('../data/haarcascade_frontalface_default.xml')
face_clsfr=cv2.CascadeClassifier(cv2.data.haarcascades + '../data/haarcascade_frontalface_default.xml')

# face mask detector
model = load_model('086-0.3412.model')

while(True):

    ret,img=source.read()
    gray=cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)
    faces=face_clsfr.detectMultiScale(gray,1.3,5)

    for x,y,w,h in faces:

        face_img=gray[y:y+w,x:x+w]
        resized=cv2.resize(face_img,(100,100))
        normalized=resized/255.0
        reshaped=np.reshape(normalized,(1,100,100,1))
        result=model.predict(reshaped)

        label=np.argmax(result,axis=1)[0]

        cv2.rectangle(img,(x,y),(x+w,y+h),color_dict[label],2)
        cv2.rectangle(img,(x,y-40),(x+w,y),color_dict[label],-1)

        if(labels_dict[label] == 'with_mask'):
            print("No Beep")
        else:
            sound.play()
            print("Beep")

        cv2.putText(
          img, "{}: {:.2f}%".format(labels_dict[label], np.max(result) * 100),
          (x, y-10),
          cv2.FONT_HERSHEY_SIMPLEX,0.6,(255,255,255),2)


    cv2.imshow('LIVE',img)
    out.write(img)

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

source.release()
out.release()

cv2.destroyAllWindows()

[OUT]
